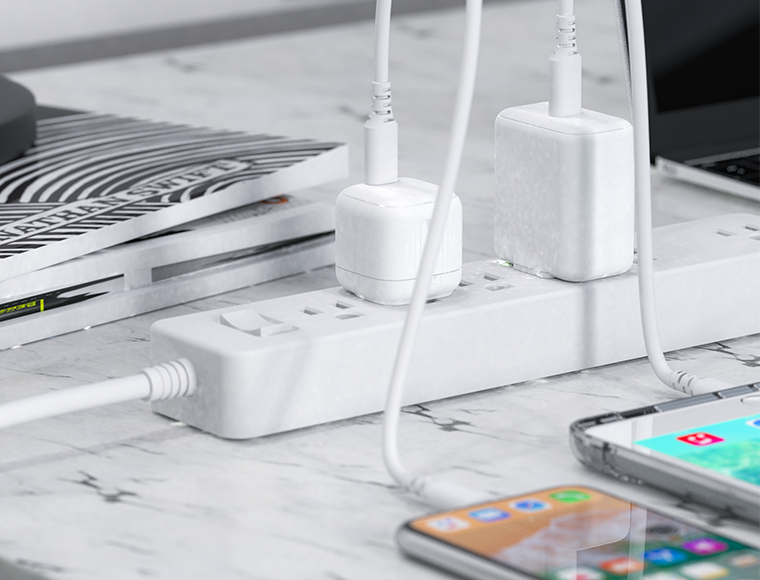

20W Charger
Leading technology, faster and safer charging technology, small size, light weight, high opera ting efficiency; easily meet the charging needs of mobile smart devices.
1.USB-C+USB-A,output power:20W
2.Fast charging speed
3.Global Multiple Safety Certification
4.Compact & Portable
- SPECIFICATIONS
Type:ASPD29/33
Output power:PD20W+QC18W(Total 20W Max)
USB C output：5V 3A/9V 2.22A/12V 1.67A
USB A output：5V 3A/9V 2A/12V 1.5A
Rated input voltage:100-240Vac
Input voltage range：90-264Vac
Input frequency:50/60Hz
Input current:0.7A(rms)max@90Vac
Incrush current:30A max@240 Vac
No load power consumption:0.1W max
Energy class:VI
Safety standard：IEC/UL/EN62368(GB4943)
EMC standard：EN55032，EN55035,EN61000
Part 15 Subpart B
CISPR 32,CISPR24
- WORKING ENVIRONMENT
Operation temperature:-10℃～25℃
Storage temperature:-20℃～70℃
Humidity:5%～95%RH
