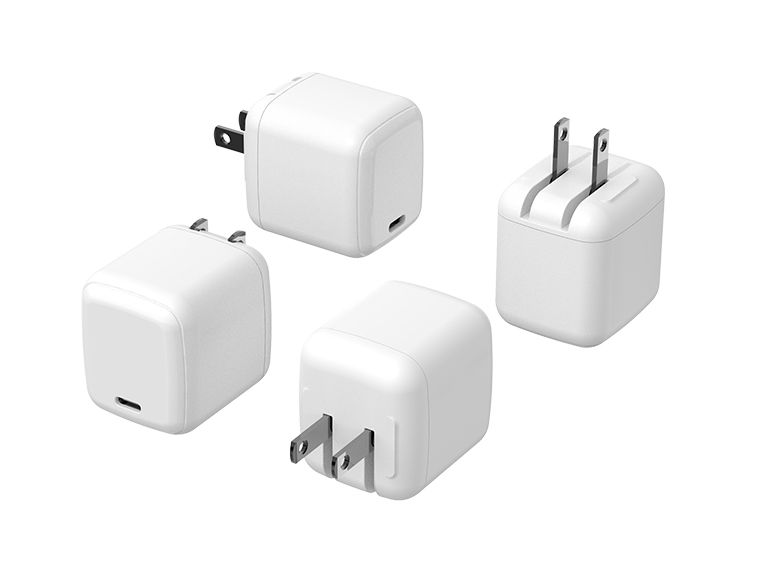

65W GaN Charger
Leading technology, faster and safer charging technology, small size, light weight, h¶igh operating efficiency; easily meet the charging needs of mobile smart devices.
1.Output power:65W
2.Fast charging speed
3.GaNFast PD certification
4.Global Multiple Safety Certification
5.Compact & Portable
- SPECIFICATIONS
Type:ASGaN10
Typical output:USB-C:5V 3A/9V 3A/ 12V 3A /15V 3A/ 20V 3.25A
PPS1:3.3-16V 3A 45W Max
PPS2:3.3-21V 3A 65W Max
Output voltage:5V/9V/12V/15V/20V(PPS:3.3-21V)
Output current:0.1A-3.0A
Rated input voltage:100-240Vac
Input voltage range：90-264Vac
Input frequency:50/60Hz
Input current:1.8A(rms)max@90Vac
Incrush current:30A max@240 Vac
No load power consumption:0.21W max
Energy class:VI
Safety standard：IEC/UL/EN62368(GB4943)
EMC standard：EN55032，EN55035,EN61000
Part 15 Subpart B
CISPR 32,CISPR24
- WORKING ENVIRONMENT
Operation temperature:-10℃～25℃
Storage temperature:-20℃～70℃
Humidity:5%～95%RH
